NBNC75BDD6

NBNC75BDD6
NBNC75BDD6
Send Inquiry
Product Code : Neutrik006
Brand Name : Neutrik
Product Description

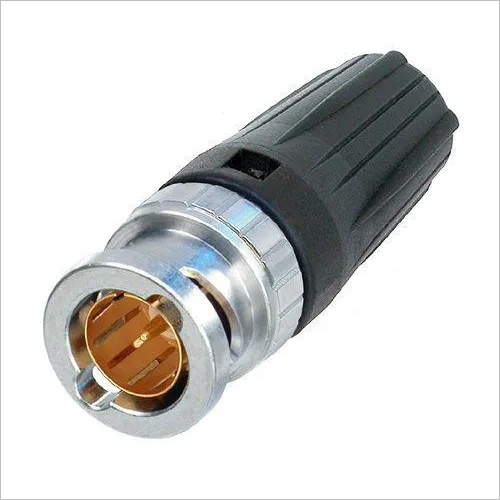

BNC Connector NBNC75BDD6

The rear TWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.

The patented rear TWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:

Belden 1855A, Clark Wire CD7523-7, CommScope 7538

Crimp size:

Pin: 1.6 mm (square)
Shield: 4.53 mm (hex)
BNC Connector NBNC75BDD6
Features & Benefits

  •     “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  •     Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  •     True 75 Ω design meets the stringent HDTV / DVD requirements
  •     Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  •     Snug-fit center pin insert provides tactile feedback
  •     Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  •     Excellent cable protection and retention
  •     Precise Swiss machined brass parts for outstanding durability
  •     Accessories include color coded boots in 10 standard colors, crimp tool and dies
